Description

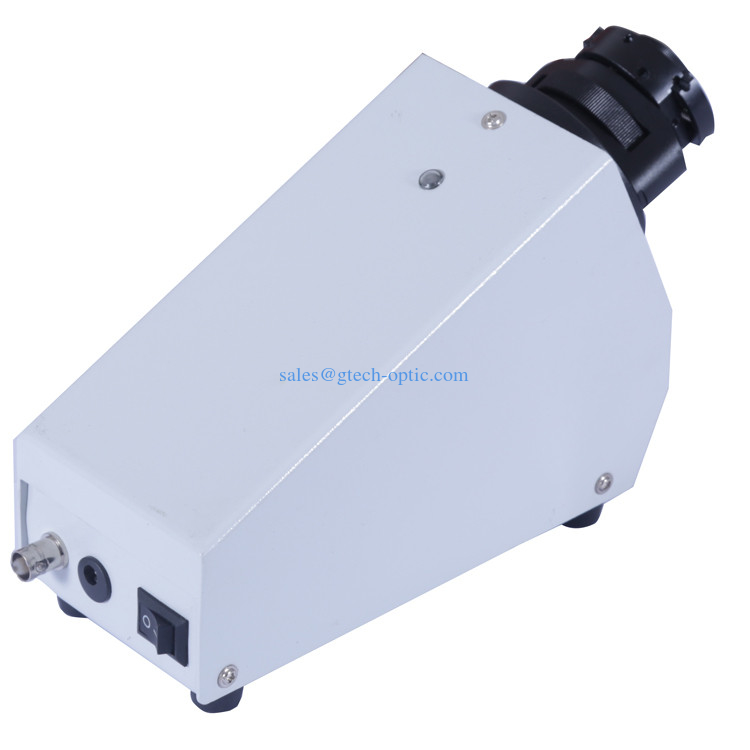

The bench-top fiber inspection microscope is used to inspect the polished surface or cleaved ends of fiber optic connectors. This high-resolution bench-top inspection microscope is ideally suited for post-polish inspection of high-quality end faces and can repeatedly detect scratches that may be missed by human technicians, delivering the level of sensitivity long sought in the industry. The AYT-03 requires a connector adapter and PC to supply power to the unit through the USB 2.0 port.Our bench-top fiber inspection microscope is an advanced application that determines the acceptability of optical fiber end faces through automated inspection and analysis. It identifies and characterizes defects and contamination and determines their location relative to the fiber core. It then provides a PASS or FAIL result according to a pre-configured failure criteria setting.
Features
- Determines acceptability of fiber end faces by utilizing an advanced automated inspection and analysis software
- Ensures consistent results by removing human subjectivity from fiber inspection and grading
- Identifies and characterizes each defect and contamination particle, and determines their location relative to the fiber core
- Archives results and images as HTML or PDF formats and generates integrated reports
- Plugs directly into PC/laptop via USB 2.0 connection
- Produces clear detailed view of fiber end face conditions with high-resolution camera and coaxial illumination
Specification
- Model: AYT-03
- Magnification: 200x, 400X,500X
- Power source : USB port or VGA port
- Connector: USB2.0
- Live image:
- Cord length:
- Particle size detection:<0.5µm
- Light source: White LED, 100,000 + hour life
- Lighting technique: X+Y axial, X axis direction is 4mm, Y axis direction is 3.5mm
- Camera: Built-in CCD camera
- Adapter Interface: 2.5mm&1.25mm ferrules
- Color: Black
- Weight: 1.40Kg
- Size: 230mm X 81mmx140mm
