Description

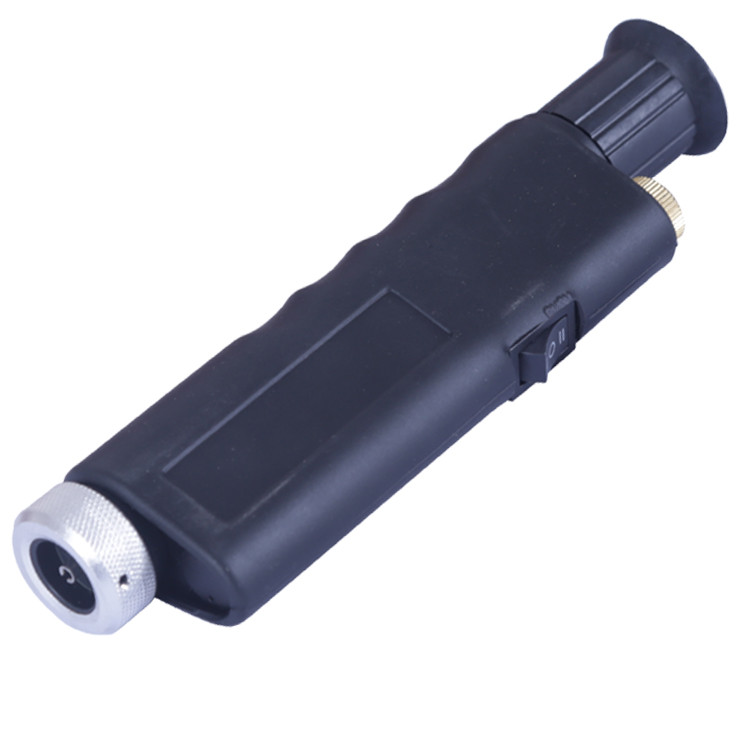

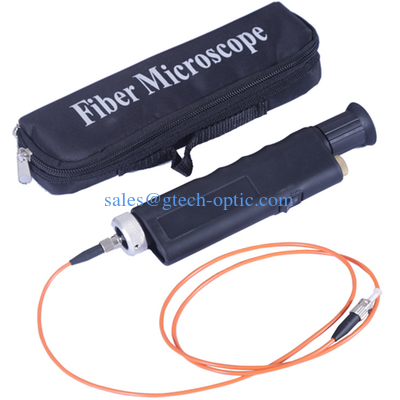

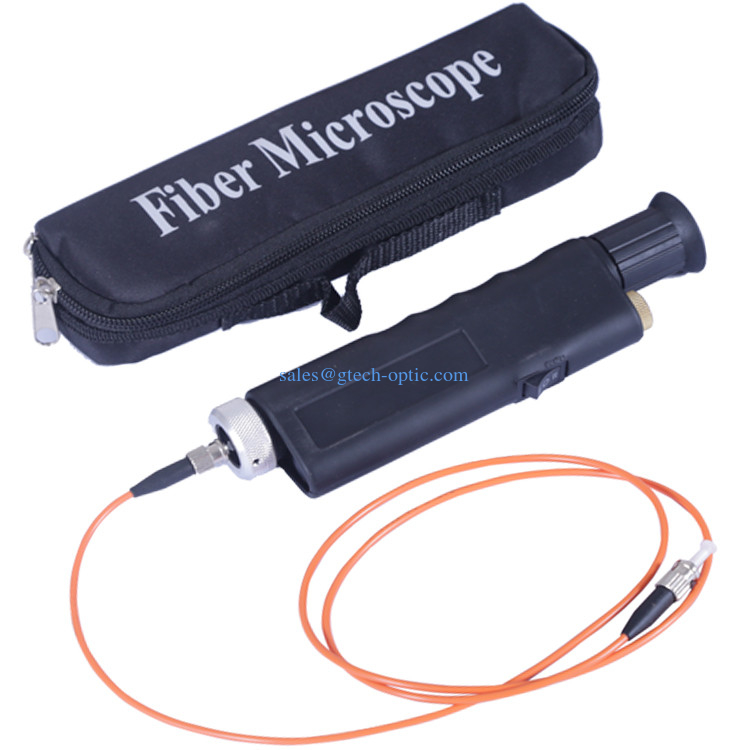

The Mini Handheld Fiber Microscopes also named Fiber Viewers are used to inspect the field termination inspection. The fiberscope handheld microscopes are the most famous inspection tool among fiber optic cable assemblers and trainers. They ensure your termination is smooth, clean and ready for optical transmission.
Features
-
Ensure clean, smooth terminations ready for optical transmission
-
Special safety filter to protect your eyes from harmful infrared rays
-
Variety of adapter caps available for viewing specific fiber optic connections
Specification
-
Model: CL-200(MINI)
-
Magnification: 200x optics for either multimode or singlemode fiber
-
Power : 3 x1.5v button batteries
-
Connector Illumination: White LED, rated for 100,000 hours
-
Controls: Momentary on/off switch, focus and control wheel
-
Switch: Automatic on/off switch for light source &Two minutes delayed on/off switch
-
Safety Filter: Built in IR filter
-
Adapter Interface: user interchangeable adapters that fit 2.5mm&1.25mm ferrules
-
Color: Black
-
Weight: 0.34Kg
-
Size: 190mm/7.48”L X 45mm/1.77”D
