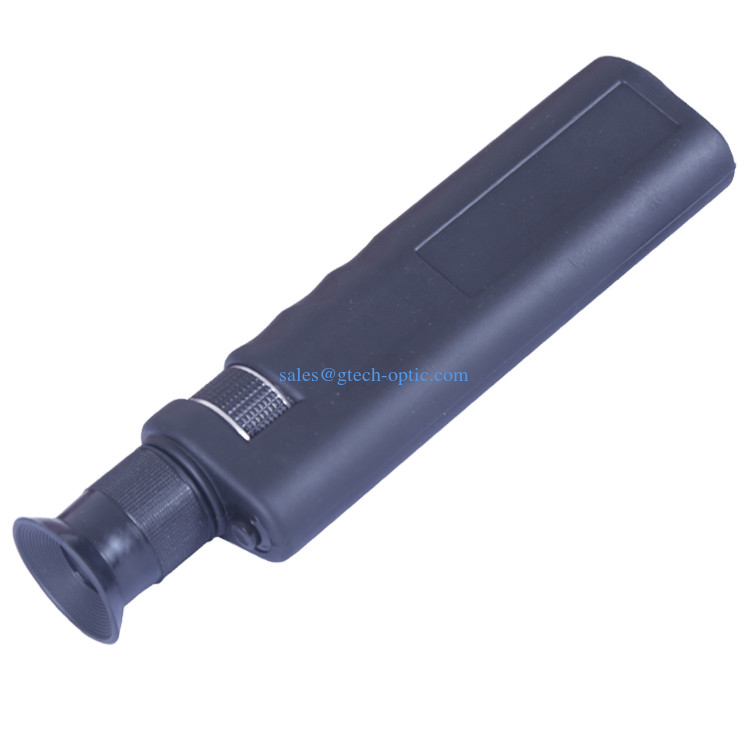

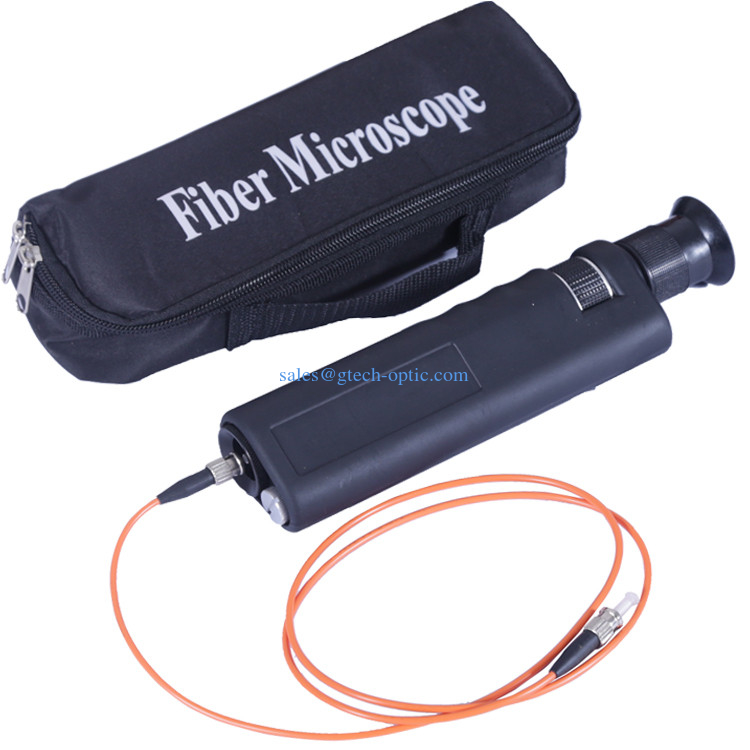

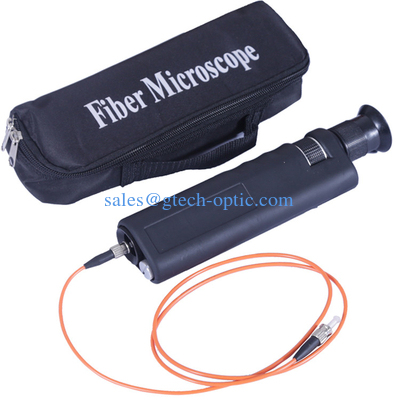

200X Ordinary Handheld Fiber Optic Inspection Microscope

Description

The 200X Ordinary Handheld Fiber Microscopes also named Fiber Viewers are used to inspect the field termination inspection. It is available in any of 5 magnifications(200X, 400X and 500X). Each Fyberscope includs a universal adaptor for 2.5mm and 1.5mm ferrules.

Features

• Ensure clean, smooth terminations ready for optical transmission
• Special safety filter to protect your eyes from harmful infrared rays
• Variety of adapter caps available for viewing specific fiber optic connections

Specification

• Model: CL-200X
• Magnification: 200x optics for either multimode or singlemode fiber
• Power : 3 x1.5v button batteries
• Connector Illumination: White LED, rated for 100,000 hours
• Controls: Momentary on/off switch, focus and control wheel
• Switch: Automatic on/off switch for light source &Two minutes delayed on/off switch
• Safety Filter: Built in IR filter
• Adapter Interface: user interchangeable adapters that fit 2.5mm&1.25mm ferrules
• Color: Black
• Weight: 0.65Kg
• Size: 225mm X 39.5mmx56mm
