| Place of Origin: | China |
|---|---|
| Model Number: | VFL-5S |
| Minimum Order Quantity: | 5pcs |
| Price: | 0.00 |

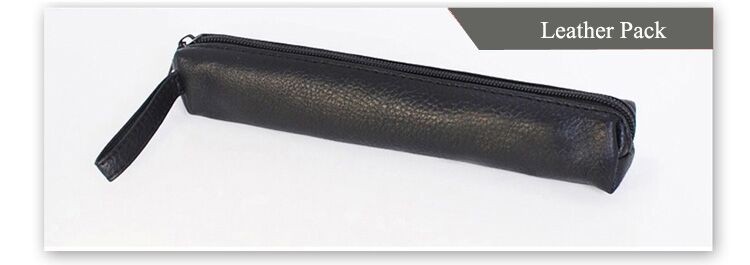

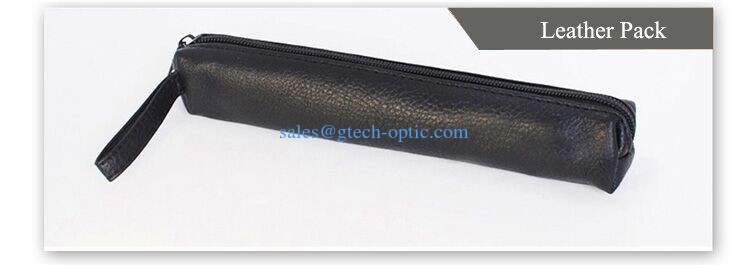

| Packaging Details: | Leather box |
| Delivery Time: | 5days after receiving payment |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs per month |
Description

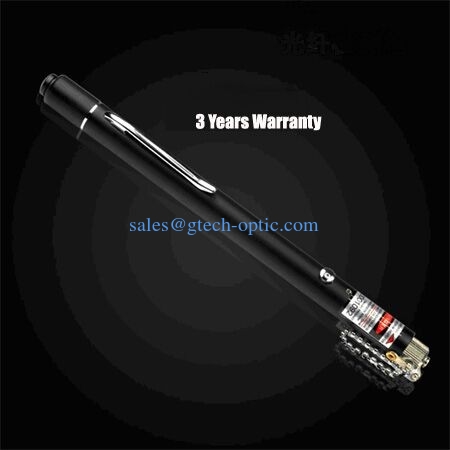

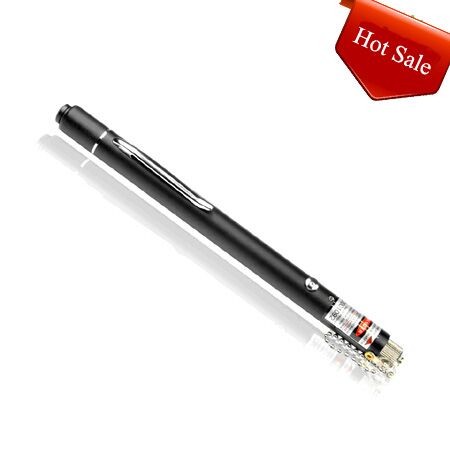

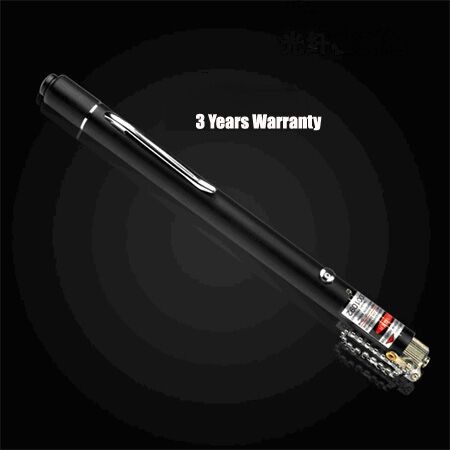

This Pen-type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. The features of Red Light has a long use time, firm structure, beautiful shape, easy to carry, and other advantages, is the ideal choice of the site construction personnel.
Features
Specification
| Model | VFL-5S | ||
| Working wavelength | 650nm±10nm(635 is available on request) | ||
| Output Power(mW) | 5mW | 10mW | 20mW |
| Detection distance | ≥5km | ≥10km | ≥20km |
| Fiber Type | SM,MM | ||
| Interface | 2.5mm common interface(FC,SC,ST) (1.25mm connector is optional) | ||
| Operating model | Both CW and Pulse available | ||
| Working mode | CW, 2Hz to 3Hz/9Hz | ||
| Work Temp. | ‐20℃ to 60℃(No condensation) | ||
| Storage Temp. | ‐40℃ to 85℃ | ||
| Material | Copper | ||
| Size | ∮16x176mm(with interface) | ||
| Battery | AAA*2 | ||
| Weight | 46g(Net) | ||
| Packing | Black Gift Box | ||
Advantages
