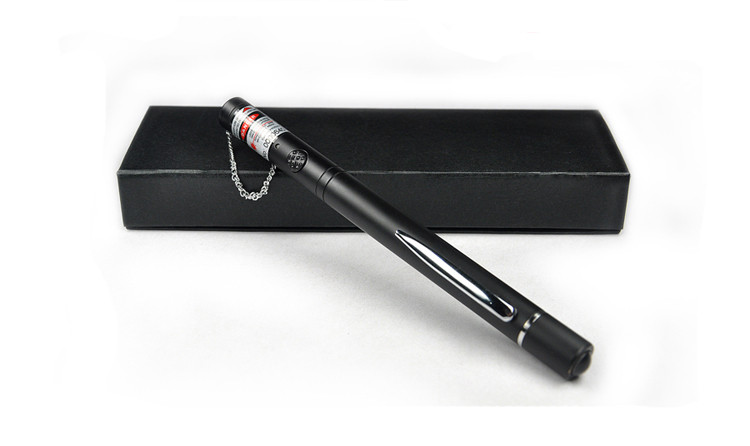

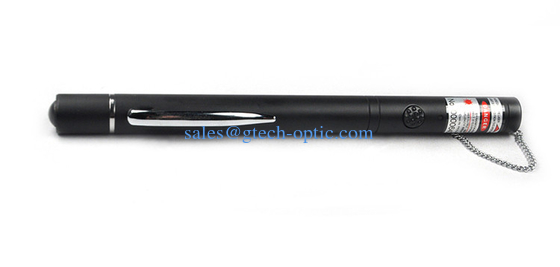

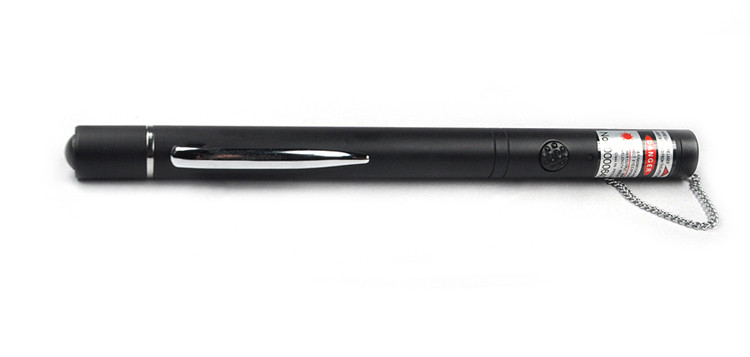

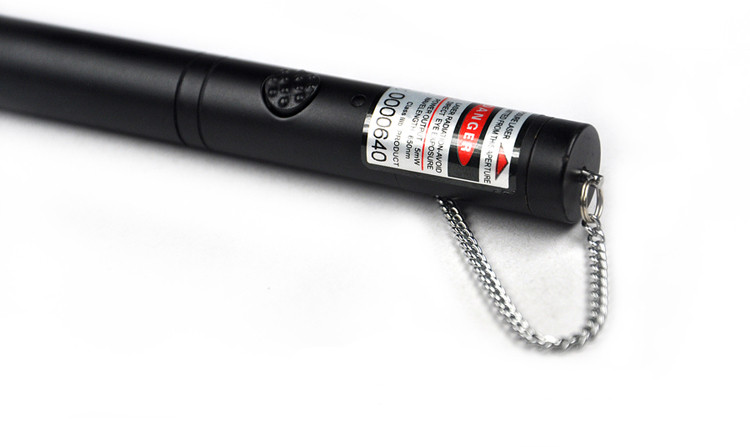

Fiber laser source Visual Fault Locator VFL-6S

Basic Information
Place of Origin: China
Model Number: VFL-6S
Minimum Order Quantity: 5pcs
Price: 0.00
Packaging Details: Leather box
Delivery Time: 5days after receiving payment
Payment Terms: T/T
Supply Ability: 100000pcs per month
Contact Now
Product Description


This Pen-type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. The features of Red Light has a long use time, firm structure, beautiful shape, easy to carry, and other advantages, is the ideal choice of the site construction personnel.



  • Model: VFL-6S
  • Laser chip: mistsubishi imported chips with life hours of 8000-12000.
  • PCB: APC, Constant power output and anti reverse battery set.
  • Working mode: CW and pulse: often on, quick flashing (9Hz), slow flashing (3Hz), off.
  • Testing environment: 50℃ high temperature testing lasted 8 hours.
  • Low battery warning
  • Long battery life (up to 60 hours)
  • Drop-resistant and dust-proof design of laser head
  • Laser case ground design prevents ESD damage




Model VFL-6S
Operate Wave 650nm±10nm(635 is available on request)
Output Power 5mW 10mW 20mW
Test Dis. ≥5km ≥10km ≥20km
Fiber Type SM,MM
Interface 2.5mm Universal Interface(FC,SC,ST)  (1.25mm connector is optional)
Operating model Both CW and Pulse available
Working mode CW, 2Hz to 3Hz
Work Temp. ‐20℃—+60℃(No condensation)
Storage Temp. ‐40℃—+85℃
Material  Aluminum
Size ∮17x162mm(interface)
Battery AAA*2
Weight 53g(Net)
Packing Black Gift Box
